Vivo Rim - Firey Red





With aesthetically pleasing lines and unbeatable value the Vivo is a lightweight, elegant rim brake frame. However, don’t be fooled by its price. The Vivo benefits from technology which filters down from high end projects including features such as an oversized headset, versatile press fit 68 bb, full carbon steerer and Di2 compatibility, which makes the Vivo a future proof and perfect chassis for even top end group sets. The balanced choice of components gives riders the possibility to assemble the Vivo to their own requirements. Mid-range components such as Shimano 105 upwards would be recommended to compliment this frame's enhanced features and characteristics. The Vivo is an extremely versatile and suitable option for even the most demanding amateur rider.

Material: Full carbon

Weave: UD

Frame Weight (Size 54 ): 950±40g + Fork 390±15g

BB: PF68

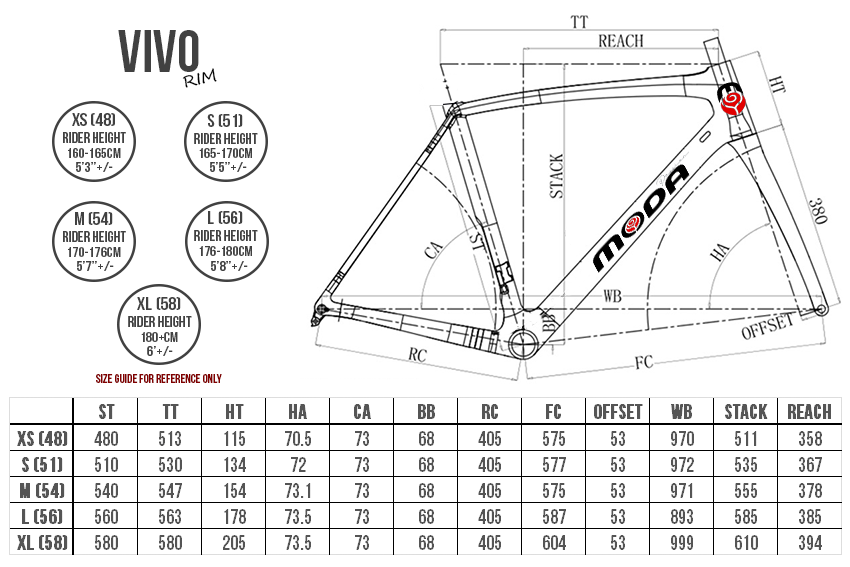

Size: 48 (XS) / 51 (S) / 54 (M) / 56 (L) / 58 (XL)

Brake: RIM Brake

Cable routing: Full internal cable routing

Max tyre: 700*25C

Build Details:

Wheels: Aksium or Cosmic Elite and Spinergy Upgrades (Aztec Rotors)

Chainset: Shimano RS500 (105), Shimano Ultegra (Ultegra/Di2)

Chainset Size: Compact (XS/S/M - 170mm, L/XL - 172.5mm)

Stem: Deda Zero/1 (Standard - XS - 9cm, S/M -10cm, L 11cm, XL - 12cm)

Handlebar: Deda Zero/1 (Standard - XS - 40cm, S/M - 42cm, L/XL - 44cm)

Saddle: Selle Italia Short Fit Model X

Tyres: Continental Ultrasport 25mm - ALL BLACK

Cassette: 11-28
